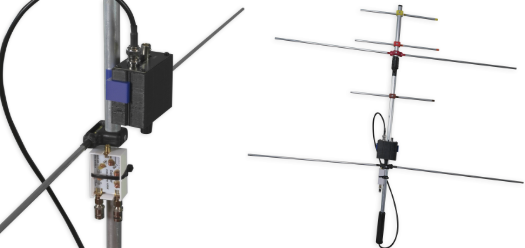

Use this handheld directional antenna to make satellite contacts (with included diplexer), hunt for hidden transmitters, and even capture signals from weather satellites. It can be assembled and disassembled in minutes and has excellent gain for its size.

No tools necessary. It comes complete in a black carrying bag with step-by-step instructions.

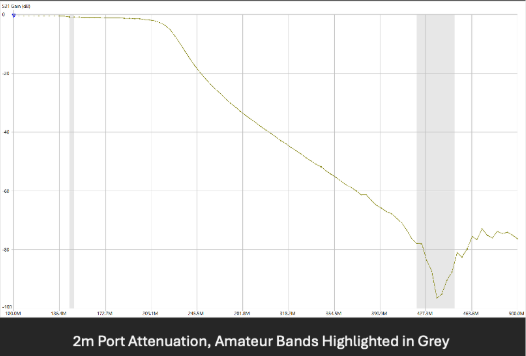

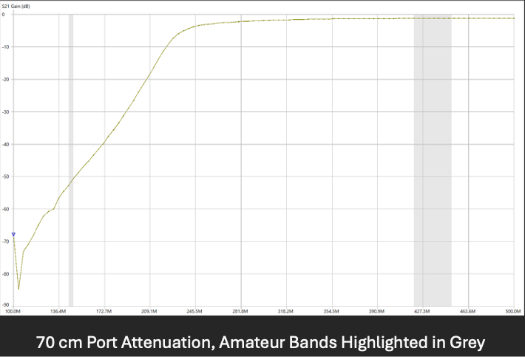

Please note, the diplexer can only handle 10W input. This diplexer provides over 50 dB of port to port isolation and has low insertion loss, great for dual radio operation with this antenna.

Order your ARRL Dual-Band 2 m/70 cm Handheld Yagi Antenna!

VSWR <1.6:1 across entire 2m Band and under 2:1 from 435 to 447 MHz

VSWR <1.2:1 on 2m and <1.07:1 on 70cm measured with an OSL Calibrated VNA.
